Introduction to influential

Identification and classification of the most influential nodes

Adrian Salavaty 01-Jun-2026

Source: vignettes/Vignettes.Rmd
Vignettes.Rmd

Overview

influential is an R package mainly for the identification of the most influential nodes in a network as well as the classification and ranking of top candidate features. The influential package contains several functions that could be categorized into five groups according to their purpose:

  • Network reconstruction
  • Calculation of centrality measures
  • Assessment of the association of centrality measures
  • Identification of the most influential network nodes
  • Experimental data-based classification and ranking of features

The sections below introduce these five categories. However, if you wish not going through all of the functions and their applications, you may skip to any of the novel methods proposed by the influential, including:

Fast correlation analysis

Correlation (association/similarity/dissimilarity) analysis is the first required step before network reconstructions. Although R base cor function makes it possible to perform correlation analysis of a table, this function is notably slow in the correlation analysis of large datasets. Also, calculation of probability values is not possible for all correlations between all pairs of features simultaneously. The fcor function calculates Pearson/Spearman correlations between all pairs of features in a matrix/dataframe much faster than the base R cor function. It is also possible to simultaneously calculate mutual rank (MR) of correlations as well as their p-values and adjusted p-values. Additionally, this function can automatically combine and flatten the result matrices. Selecting correlated features using an MR-based threshold rather than based on their correlation coefficients or an arbitrary p-value is more efficient and accurate in inferring functional associations in systems, for example in gene regulatory networks.

Here is an example of performing correlation analysis using the fcor function.


# Prepare a sample dataset
set.seed(60)
my_data <- matrix(data = runif(n = 10000, min = 2, max = 300),
                       nrow = 50, ncol = 200,
                       dimnames = list(c(paste("sample", c(1:50), sep = "_")),
                                       c(paste("gene", c(1:200), sep = "_")))
)

Have a look at top 5 samples and gene (rows and columns) of the my_data:

gene_1 gene_2 gene_3 gene_4 gene_5
sample_1 229.80194 202.09477 286.98031 212.86299 255.15716
sample_2 107.12704 262.56776 92.47135 263.67454 188.00376
sample_3 208.04590 123.99512 284.35705 173.80360 270.60758
sample_4 209.36913 141.90713 154.59261 130.17074 219.54511
sample_5 86.21945 14.10478 258.05186 40.89961 18.83074

# Calculate correlations between all pairs of genes

correlation_tbl <- fcor(data = my_data,
                        method = "spearman",
                        mutualRank = TRUE,
                        pvalue = "TRUE", adjust = "BH",
                        flat = TRUE)

Now have a look at the top 10 rows of the correlation_tbl:

row column cor mr p p.adj
gene_1 gene_2 0.3373349 3.872983 0.0165899 0.8096184
gene_1 gene_3 0.0721729 122.270193 0.6184265 0.9981266
gene_2 gene_3 0.0002401 200.000000 0.9986797 0.9995793
gene_1 gene_4 -0.0636255 132.864593 0.6606863 0.9981266
gene_2 gene_4 0.0124370 182.931681 0.9316877 0.9981266
gene_3 gene_4 -0.0945498 108.958708 0.5136765 0.9981266
gene_1 gene_5 -0.0616086 136.167177 0.6708188 0.9981266
gene_2 gene_5 -0.1063625 90.862533 0.4622400 0.9981266
gene_3 gene_5 0.2174790 25.922963 0.1292321 0.9700054
gene_4 gene_5 0.0341417 171.499271 0.8139135 0.9981266

Back to top

Network reconstruction

Three functions have been obtained from the igraph1 R package for the reconstruction of networks.

From a data frame

In the data frame the first and second columns should be composed of source and target nodes.
A sample appropriate data frame is brought below:

lncRNA Coexpressed.Gene
ADAMTS9-AS2 A2M
ADAMTS9-AS2 ABCA6
ADAMTS9-AS2 ABCA8
ADAMTS9-AS2 ABCA9
ADAMTS9-AS2 ABI3BP
ADAMTS9-AS2 AC093110.3

This is a co-expression dataset obtained from a paper by Salavaty et al.2

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(d=MyData)

If you look at the class of My_graph you should see that it has an igraph class:

class(My_graph)
#> [1] "igraph"

From an adjacency matrix

A sample appropriate adjacency matrix is brought below:

LINC00891 LINC00968 LINC00987 LINC01506 MAFG-AS1 MIR497HG
LINC00891 0 1 1 0 0 0
LINC00968 0 0 1 0 0 0
LINC00987 0 1 0 0 0 0
LINC01506 0 0 0 0 0 0
MAFG-AS1 0 0 0 0 0 0
MIR497HG 0 1 1 0 0 0
  • Note that the matrix has the same number of rows and columns.
# Preparing the data
MyData <- coexpression.adjacency

# Reconstructing the graph
My_graph <- graph_from_adjacency_matrix(MyData)

From an incidence matrix

A sample appropriate incidence matrix is brought below:

Gene_1 Gene_2 Gene_3 Gene_4 Gene_5
cell_1 0 1 1 0 1
cell_2 1 1 1 0 0
cell_3 1 1 1 0 0
cell_4 0 0 0 1 0
# Reconstructing the graph
My_graph <- graph_from_adjacency_matrix(MyData)

From a SIF file

SIF is the common output format of the Cytoscape software.

# Reconstructing the graph
My_graph <- sif2igraph(Path = "Sample_SIF.sif")

class(My_graph)
#> [1] "igraph"

Back to top

Calculation of centrality measures

To calculate the centrality of nodes within a network several different options are available. The following sections describe how to obtain the names of network nodes and use different functions to calculate the centrality of nodes within a network. Although several centrality functions are provided, we recommend the IVI for the identification of the most influential nodes within a network.

By the way, the results of all of the following centrality functions could be conveniently illustrated using the centrality-based network visualization function.

Network vertices

Network vertices (nodes) are required in order to calculate their centrality measures. Thus, before calculation of network centrality measures we need to obtain the name of required network vertices. To this end, we use the V function, which is obtained from the igraph package. However, you may provide a character vector of the name of your desired nodes manually.

  • Note in many of the centrality index functions the entire network nodes are assessed if no vector of desired vertices is provided.
# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
My_graph_vertices <- V(My_graph)

head(My_graph_vertices)
#> + 6/794 vertices, named, from 775cff6:
#> [1] ADAMTS9-AS2 C8orf34-AS1 CADM3-AS1   FAM83A-AS1  FENDRR      LANCL1-AS1

Degree centrality

Degree centrality is the most commonly used local centrality measure which could be calculated via the degree function obtained from the igraph package.

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculating degree centrality
My_graph_degree <- degree(My_graph, v = GraphVertices, normalized = FALSE)

head(My_graph_degree)
#> ADAMTS9-AS2 C8orf34-AS1   CADM3-AS1  FAM83A-AS1      FENDRR  LANCL1-AS1
#>         172         121         168          26         189         176

Degree centrality could be also calculated for directed graphs via specifying the mode parameter.

Betweenness centrality

Betweenness centrality, like degree centrality, is one of the most commonly used centrality measures but is representative of the global centrality of a node. This centrality metric could also be calculated using a function obtained from the igraph package.

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculating betweenness centrality
My_graph_betweenness <- betweenness(My_graph, v = GraphVertices,
                                    directed = FALSE, normalized = FALSE)

head(My_graph_betweenness)
#> ADAMTS9-AS2 C8orf34-AS1   CADM3-AS1  FAM83A-AS1      FENDRR  LANCL1-AS1
#>   21719.857   28185.199   26946.625    2940.467   33333.369   21830.511

Betweenness centrality could be also calculated for directed and/or weighted graphs via specifying the directed and weights parameters, respectively.

Neighborhood connectivity

Neighborhood connectivity is one of the other important centrality measures that reflect the semi-local centrality of a node. This centrality measure was first represented in a Science paper3 in 2002 and is for the first time calculable in R environment via the influential package.

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculating neighborhood connectivity
neighrhood.co <- neighborhood.connectivity(graph = My_graph,
                                           vertices = GraphVertices,
                                           mode = "all")

head(neighrhood.co)
#>  ADAMTS9-AS2 C8orf34-AS1   CADM3-AS1  FAM83A-AS1      FENDRR  LANCL1-AS1
#>   11.290698    4.983471    7.970238    3.000000   15.153439   13.465909

Neighborhood connectivity could be also calculated for directed graphs via specifying the mode parameter.

H-index

H-index is H-index is another semi-local centrality measure that was inspired from its application in assessing the impact of researchers and is for the first time calculable in R environment via the influential package.

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculating H-index
h.index <- h_index(graph = My_graph,
                   vertices = GraphVertices,
                   mode = "all")

head(h.index)
#> ADAMTS9-AS2 C8orf34-AS1   CADM3-AS1  FAM83A-AS1      FENDRR  LANCL1-AS1
#>          11           9          11           2          12          12

H-index could be also calculated for directed graphs via specifying the mode parameter.

Local H-index

Local H-index (LH-index) is a semi-local centrality measure and an improved version of H-index centrality that leverages the H-index to the second order neighbors of a node and is for the first time calculable in R environment via the influential package.

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculating Local H-index
lh.index <- lh_index(graph = My_graph,
                   vertices = GraphVertices,
                   mode = "all")

head(lh.index)
#> ADAMTS9-AS2 C8orf34-AS1   CADM3-AS1  FAM83A-AS1      FENDRR  LANCL1-AS1
#>        1165         446         994          34        1289        1265

Local H-index could be also calculated for directed graphs via specifying the mode parameter.

Collective Influence

Collective Influence (CI) is a global centrality measure that calculates the product of the reduced degree (degree - 1) of a node and the total reduced degree of all nodes at a distance d from the node. This centrality measure is for the first time provided in an R package.

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculating Collective Influence
ci <- collective.influence(graph = My_graph,
                          vertices = GraphVertices,
                          mode = "all", d=3)

head(ci)
#> ADAMTS9-AS2 C8orf34-AS1   CADM3-AS1  FAM83A-AS1      FENDRR  LANCL1-AS1
#>        9918       70560       39078         675       10716        7350

Collective Influence could be also calculated for directed graphs via specifying the mode parameter.

ClusterRank

ClusterRank is a local centrality measure that makes a connection between local and semi-local characteristics of a node and at the same time removes the negative effects of local clustering.

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculating ClusterRank
cr <- clusterRank(graph = My_graph,
                  vids = GraphVertices,
                  directed = FALSE, loops = TRUE)

head(cr)
#> ADAMTS9-AS2 C8orf34-AS1   CADM3-AS1  FAM83A-AS1      FENDRR  LANCL1-AS1
#>   63.459812    5.185675   21.111776    1.280000  135.098278   81.255195

ClusterRank could be also calculated for directed graphs via specifying the directed parameter.

Back to top

Assessment of the association of centrality measures

Conditional probability of deviation from means

The function cond.prob.analysis assesses the conditional probability of deviation of two centrality measures (or any other two continuous variables) from their corresponding means in opposite directions.

# Preparing the data
MyData <- centrality.measures

# Assessing the conditional probability
My.conditional.prob <- cond.prob.analysis(data = MyData,
                                          nodes.colname = rownames(MyData),
                                          Desired.colname = "BC",
                                          Condition.colname = "NC")

print(My.conditional.prob)
#> $ConditionalProbability
#> [1] 51.61871
#>
#> $ConditionalProbability_split.half.sample
#> [1] 51.73611
  • As you can see in the results, the whole data is also randomly splitted into half in order to further test the validity of conditional probability assessments.
  • The higher the conditional probability the more two centrality measures behave in contrary manners.

Nature of association (considering dependent and independent)

The function double.cent.assess could be used to automatically assess both the distribution mode of centrality measures (two continuous variables) and the nature of their association. The analyses done through this formula are as follows:

  1. Normality assessment:
    • Variables with lower than 5000 observations: Shapiro-Wilk test
    • Variables with over 5000 observations: Anderson-Darling test

  2. Assessment of non-linear/non-monotonic correlation:
    • Non-linearity assessment: Fitting a generalized additive model (GAM) with integrated smoothness approximations using the mgcv package

    • Non-monotonicity assessment: Comparing the squared coefficients of the correlation based on Spearman’s rank correlation analysis and ranked regression test with non-linear splines.
      • Squared coefficient of Spearman’s rank correlation > R-squared ranked regression with non-linear splines: Monotonic
      • Squared coefficient of Spearman’s rank correlation < R-squared ranked regression with non-linear splines: Non-monotonic

  3. Dependence assessment:
    • Hoeffding’s independence test: Hoeffding’s test of independence is a test based on the population measure of deviation from independence which computes a D Statistics ranging from -0.5 to 1: Greater D values indicate a higher dependence between variables.
    • Descriptive non-linear non-parametric dependence test: This assessment is based on non-linear non-parametric statistics (NNS) which outputs a dependence value ranging from 0 to 1. For further details please refer to the NNS R package4: Greater values indicate a higher dependence between variables.

  4. Correlation assessment: As the correlation between most of the centrality measures follows a non-monotonic form, this part of the assessment is done based on the NNS statistics which itself calculates the correlation based on partial moments and outputs a correlation value ranging from -1 to 1. For further details please refer to the NNS R package.

  5. Assessment of conditional probability of deviation from means This step assesses the conditional probability of deviation of two centrality measures (or any other two continuous variables) from their corresponding means in opposite directions.
    • The independent centrality measure (variable) is considered as the condition variable and the other as the desired one.
    • As you will see in the results, the whole data is also randomly splitted into half in order to further test the validity of conditional probability assessments.
    • The higher the conditional probability the more two centrality measures behave in contrary manners.
# Preparing the data
MyData <- centrality.measures

# Association assessment
My.metrics.assessment <- double.cent.assess(data = MyData,
                                            nodes.colname = rownames(MyData),
                                            dependent.colname = "BC",
                                            independent.colname = "NC")

print(My.metrics.assessment)
#> $Summary_statistics
#>         BC NC
#> Min.              0.000000000                   1.2000
#> 1st Qu.           0.000000000                  66.0000
#> Median            0.000000000                 156.0000
#> Mean              0.005813357                 132.3443
#> 3rd Qu.           0.000340000                 179.3214
#> Max.              0.529464720                 192.0000
#>
#> $Normality_results
#>                               p.value
#> BC    1.415450e-50
#> NC 9.411737e-30
#>
#> $Dependent_Normality
#> [1] "Non-normally distributed"
#>
#> $Independent_Normality
#> [1] "Non-normally distributed"
#>
#> $GAM_nonlinear.nonmonotonic.results
#>      edf  p-value
#> 8.992406 0.000000
#>
#> $Association_type
#> [1] "nonlinear-nonmonotonic"
#>
#> $HoeffdingD_Statistic
#>         D_statistic P_value
#> Results  0.01770279   1e-08
#>
#> $Dependence_Significance
#>                       Hoeffding
#> Results Significantly dependent
#>
#> $NNS_dep_results
#>         Correlation Dependence
#> Results  -0.7948106  0.8647164
#>
#> $ConditionalProbability
#> [1] 55.35386
#>
#> $ConditionalProbability_split.half.sample
#> [1] 55.90331

Note: It should also be noted that as a single regression line does not fit all models with a certain degree of freedom, based on the size and correlation mode of the variables provided, this function might return an error due to incapability of running step 2. In this case, you may follow each step manually or as an alternative run the other function named double.cent.assess.noRegression which does not perform any regression test and consequently it is not required to determine the dependent and independent variables.

Nature of association (without considering dependence direction)

The function double.cent.assess.noRegression could be used to automatically assess both the distribution mode of centrality measures (two continuous variables) and the nature of their association. The analyses done through this formula are as follows:

  1. Normality assessment:
    • Variables with lower than 5000 observations: Shapiro-Wilk test
    • Variables with over 5000 observations: Anderson–Darling test

  2. Dependence assessment:
    • Hoeffding’s independence test: Hoeffding’s test of independence is a test based on the population measure of deviation from independence which computes a D Statistics ranging from -0.5 to 1: Greater D values indicate a higher dependence between variables.
    • Descriptive non-linear non-parametric dependence test: This assessment is based on non-linear non-parametric statistics (NNS) which outputs a dependence value ranging from 0 to 1. For further details please refer to the NNS R package: Greater values indicate a higher dependence between variables.

  3. Correlation assessment: As the correlation between most of the centrality measures follows a non-monotonic form, this part of the assessment is done based on the NNS statistics which itself calculates the correlation based on partial moments and outputs a correlation value ranging from -1 to 1. For further details please refer to the NNS R package.

  4. Assessment of conditional probability of deviation from means This step assesses the conditional probability of deviation of two centrality measures (or any other two continuous variables) from their corresponding means in opposite directions.
    • The centrality2 variable is considered as the condition variable and the other (centrality1) as the desired one.
    • As you will see in the results, the whole data is also randomly splitted into half in order to further test the validity of conditional probability assessments.
    • The higher the conditional probability the more two centrality measures behave in contrary manners.
# Preparing the data
MyData <- centrality.measures

# Association assessment
My.metrics.assessment <- double.cent.assess.noRegression(data = MyData,
                                                         nodes.colname = rownames(MyData),
                                                         centrality1.colname = "BC",
                                                         centrality2.colname = "NC")

print(My.metrics.assessment)
#> $Summary_statistics
#>         BC NC
#> Min.              0.000000000                   1.2000
#> 1st Qu.           0.000000000                  66.0000
#> Median            0.000000000                 156.0000
#> Mean              0.005813357                 132.3443
#> 3rd Qu.           0.000340000                 179.3214
#> Max.              0.529464720                 192.0000
#>
#> $Normality_results
#>                               p.value
#> BC    1.415450e-50
#> NC 9.411737e-30
#>
#> $Centrality1_Normality
#> [1] "Non-normally distributed"
#>
#> $Centrality2_Normality
#> [1] "Non-normally distributed"
#>
#> $HoeffdingD_Statistic
#>         D_statistic P_value
#> Results  0.01770279   1e-08
#>
#> $Dependence_Significance
#>                       Hoeffding
#> Results Significantly dependent
#>
#> $NNS_dep_results
#>         Correlation Dependence
#> Results  -0.7948106  0.8647164
#>
#> $ConditionalProbability
#> [1] 55.35386
#>
#> $ConditionalProbability_split.half.sample
#> [1] 55.68163

Back to top

Identification of the most influential network nodes

IVI : IVI is the first integrative method for the identification of network most influential nodes in a way that captures all network topological dimensions. The IVI formula integrates the most important local (i.e. degree centrality and ClusterRank), semi-local (i.e. neighborhood connectivity and local H-index) and global (i.e. betweenness centrality and collective influence) centrality measures in such a way that both synergizes their effects and removes their biases.

Integrated Value of Influence (IVI) from centrality measures

# Preparing the data
MyData <- centrality.measures

# Calculation of IVI
My.vertices.IVI <- ivi.from.indices(DC = MyData$DC,
                                   CR = MyData$CR,
                                   NC = MyData$NC,
                                   LH_index = MyData$LH_index,
                                   BC = MyData$BC,
                                   CI = MyData$CI)

head(My.vertices.IVI)
#> [1] 24.670056  8.344337 18.621049  1.017768 29.437028 33.512598

Integrated Value of Influence (IVI) from a graph

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculation of IVI
My.vertices.IVI <- ivi(graph = My_graph, vertices = GraphVertices,
                       weights = NULL, directed = FALSE, mode = "all",
                       loops = TRUE, d = 3, scale = "range")

head(My.vertices.IVI)
#> ADAMTS9-AS2 C8orf34-AS1   CADM3-AS1  FAM83A-AS1      FENDRR  LANCL1-AS1
#>    39.53878    19.94999    38.20524     1.12371   100.00000    47.49356

IVI could be also calculated for directed and/or weighted graphs via specifying the directed, mode, and weights parameters.

Check out our paper5 for a more complete description of the IVI formula and all of its underpinning methods and analyses.

The following tutorial video demonstrates how to simply calculate the IVI value of all of the nodes within a network.

Watch the ExIR tutorial video on YouTube

Network visualization

The cent_network.vis is a function for the visualization of a network based on applying a centrality measure to the size and color of network nodes. The centrality of network nodes could be calculated by any means and based on any centrality index. Here, we demonstrate the visualization of a network according to IVI values.

# Reconstructing the graph
set.seed(70)
My_graph <-  igraph::sample_gnm(n = 50, m = 120, directed = TRUE)

# Calculating the IVI values
My_graph_IVI <- ivi(My_graph, directed = TRUE)

# Visualizing the graph based on IVI values
My_graph_IVI_Vis <- cent_network.vis(graph = My_graph,
                                     cent.metric = My_graph_IVI,
                                     directed = TRUE,
                                     plot.title = "IVI-based Network",
                                     legend.title = "IVI value")

My_graph_IVI_Vis

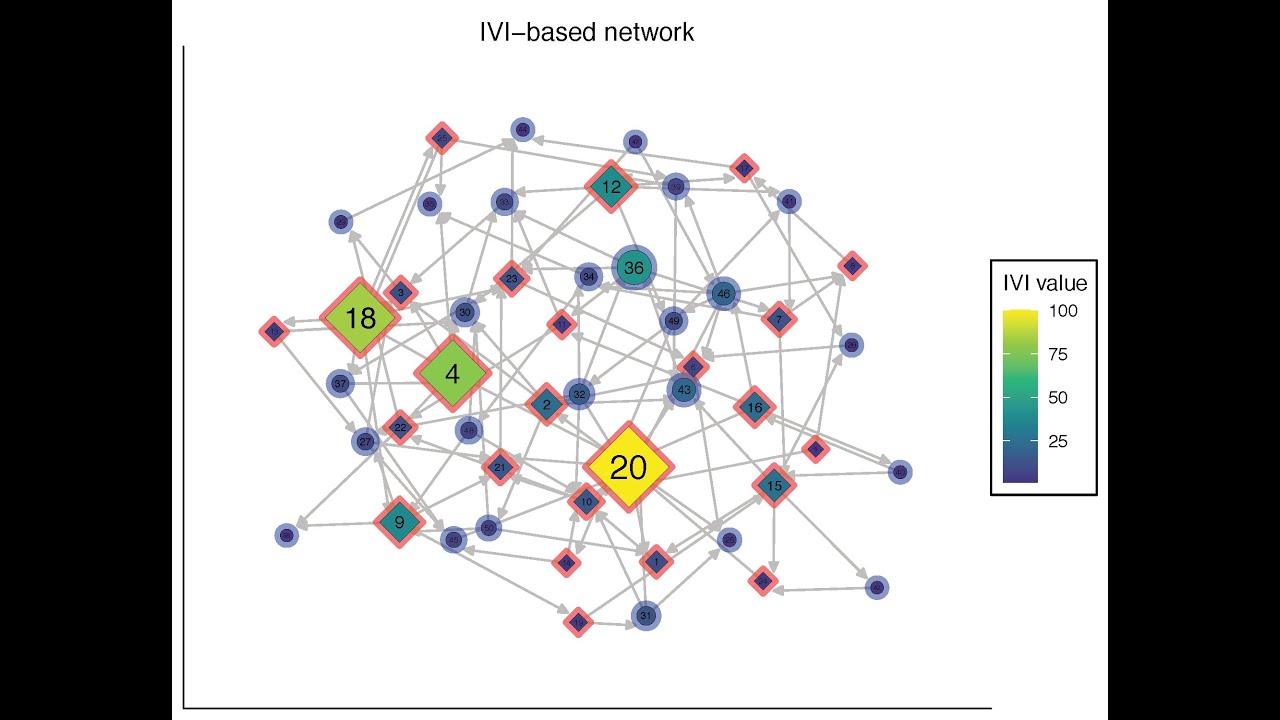

The above figure illustrates a simple use case of the function cent_network.vis. You can apply this function to directed/undirected and/or weighted/unweighted networks. Also, a complete flexibility (list of arguments) have been provided for the adjustment of colors, transparencies, sizes, titles, etc. Additionally, several different layouts have been provided that could be conveniently applied to a network.

In the case of highly crowded networks, the “grid” layout would be most appropriate.

The following tutorial video demonstrates how to visualize a network based on the centrality of nodes (e.g. their IVI values).

Watch the ExIR tutorial video on YouTube

IVI shiny app

A shiny app has also been developed for the calculation of IVI as well as IVI-based network visualization, which is accessible using the following command.
influential::runShinyApp("IVI")
You can also access the shiny app online at the Influential Software Package server.

Back to top

Identification of the most important network spreaders

Sometimes we seek to identify not necessarily the most influential nodes but the nodes with most potential in spreading of information throughout the network.

Spreading score : spreading.score is an integrative score made up of four different centrality measures including ClusterRank, neighborhood connectivity, betweenness centrality, and collective influence. Also, Spreading score reflects the spreading potential of each node within a network and is one of the major components of the IVI.

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculation of Spreading score
Spreading.score <- spreading.score(graph = My_graph,
                                   vertices = GraphVertices,
                                   weights = NULL, directed = FALSE, mode = "all",
                                   loops = TRUE, d = 3, scale = "range")

head(Spreading.score)
#> ADAMTS9-AS2 C8orf34-AS1   CADM3-AS1  FAM83A-AS1      FENDRR  LANCL1-AS1
#>   42.932497   38.094111   45.114648    1.587262  100.000000   49.193292

Spreading score could be also calculated for directed and/or weighted graphs via specifying the directed, mode, and weights parameters. The results could be conveniently illustrated using the centrality-based network visualization function.

Back to top

Identification of the most important network hubs

In some cases we want to identify not the nodes with the most sovereignty in their surrounding local environments.

Hubness score : hubness.score is an integrative score made up of two different centrality measures including degree centrality and local H-index. Also, Hubness score reflects the power of each node in its surrounding environment and is one of the major components of the IVI.

# Preparing the data
MyData <- coexpression.data

# Reconstructing the graph
My_graph <- graph_from_data_frame(MyData)

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculation of Hubness score
Hubness.score <- hubness.score(graph = My_graph,
                                   vertices = GraphVertices,
                                   directed = FALSE, mode = "all",
                                   loops = TRUE, scale = "range")

head(Hubness.score)
#> ADAMTS9-AS2 C8orf34-AS1   CADM3-AS1  FAM83A-AS1      FENDRR  LANCL1-AS1
#>   84.299719   46.741660   77.441514    8.437142   92.870451   88.734131

Spreading score could be also calculated for directed graphs via specifying the directed and mode parameters. The results could be conveniently illustrated using the centrality-based network visualization function.

Back to top

Ranking the influence of nodes on the topology of a network based on the SIRIR model

SIRIR : SIRIR is achieved by the integration of susceptible-infected-recovered (SIR) model with the leave-one-out cross validation technique and ranks network nodes based on their true universal influence on the network topology and spread of information. One of the applications of this function is the assessment of performance of a novel algorithm in identification of network influential nodes.

# Reconstructing the graph
My_graph <-  sif2igraph(Path = "Sample_SIF.sif")

# Extracting the vertices
GraphVertices <- V(My_graph)

# Calculation of influence rank
Influence.Ranks <- sirir(graph = My_graph,
                                   vertices = GraphVertices,
                                   beta = 0.5, gamma = 1, no.sim = 10, seed = 1234)
difference.value rank
MRAP 49.7 1
FOXM1 49.5 2
ATAD2 49.5 2
POSTN 49.4 4
CDC7 49.3 5
ZWINT 42.1 6
MKI67 41.9 7
FN1 41.9 7
ASPM 41.8 9
ANLN 41.8 9

Back to top

Experimental data-based classification and ranking of top candidate features

ExIR
ExIR is a model for the classification and ranking of top candidate features from experimental omics data. The input data can come from different experimental platforms, including transcriptomics, proteomics, bulk RNA-seq, and single-cell RNA-seq. The model combines multi-level filtration and scoring based on supervised learning, unsupervised learning, network reconstruction, and integrated influence ranking to classify and prioritize candidate features.

Depending on the input data and specified arguments, exir returns a graph object and one to four result tables:

  • Drivers: Prioritized drivers are features predicted to have the highest impact on the progression of the biological process or disease under investigation.
  • Biomarkers: Prioritized biomarkers are features predicted to have high sensitivity to the conditions under investigation and to the severity of those conditions.
  • DE-mediators: Prioritized DE-mediators are differentially expressed/abundant features that may act in a fluctuating or mediatory manner between drivers.
  • nonDE-mediators: Prioritized nonDE-mediators are features that are not differentially expressed/abundant but are associated with and may mediate relationships between drivers.

The exir function accepts experimental data in several formats, including data frames, tibbles, matrices, sparse matrices, and Seurat objects. For non-Seurat inputs, the default orientation is the common omics format, with features/genes in rows and samples/cells in columns. Internally, ExIR converts the data to the required analysis format, with samples/cells in rows and features in columns.

The condition argument can be either the name of a condition row/column in the input data or a character/factor vector specifying the condition of each sample/cell in the same order as the samples/cells in Exptl_data. For Seurat objects, condition should be the name of a metadata column.

Preparing the differential/regression data

Suppose we have time-course transcriptomics data and have previously performed differential expression analysis for each step-wise comparison between time points. Suppose we have also performed regression or trajectory analysis to identify genes with significant alterations across the full time course.

# Prepare sample feature names
gene.names <- paste("gene", 1:2000, sep = "_")

set.seed(60)
tp2.vs.tp1.DEGs <- data.frame(
  logFC = rnorm(n = 700, mean = 2, sd = 4),
  FDR = runif(n = 700, min = 0.0001, max = 0.049)
)
rownames(tp2.vs.tp1.DEGs) <- sample(gene.names, size = 700)

set.seed(70)
tp3.vs.tp2.DEGs <- data.frame(
  logFC = rnorm(n = 1300, mean = -1, sd = 5),
  FDR = runif(n = 1300, min = 0.0011, max = 0.039)
)
rownames(tp3.vs.tp2.DEGs) <- sample(gene.names, size = 1300)

set.seed(80)
regression.data <- data.frame(
  R_squared = runif(n = 800, min = 0.1, max = 0.85)
)
rownames(regression.data) <- sample(gene.names, size = 800)

Assembling the Diff_data

Use the function diff_data.assembly to automatically generate the Diff_data table for the ExIR model.

my_Diff_data <- diff_data.assembly(tp2.vs.tp1.DEGs,
                                   tp3.vs.tp2.DEGs,
                                   regression.data)

my_Diff_data[c(1:10),]

Have a look at the top 10 rows of the Diff_data data frame:

Diff_value1 Sig_value1 Diff_value2 Sig_value2 Diff_value3
gene_17331 4.9 0 0 1 0
gene_12546 4.0 0 0 1 0
gene_12837 -0.3 0 0 1 0
gene_18522 1.4 0 0 1 0
gene_6260 -4.9 0 0 1 0
gene_2722 -4.9 0 0 1 0
gene_19882 6.3 0 0 1 0
gene_2790 3.3 0 0 1 0
gene_17011 -1.6 0 0 1 0
gene_8321 3.8 0 0 1 0

Preparing the experimental data (Exptl_data)

The recommended input format for non-Seurat omics data is a matrix or data frame with features in rows and samples/cells in columns. This is the default expected orientation:

Exptl_data_orientation = "features_rows"

For bulk omics data, the input should usually be normalized and log-transformed before running exir. Alternatively, if the input is raw count-like bulk RNA-seq data, users can set:

normalize = TRUE

In that case, ExIR applies TMM normalization followed by logCPM transformation using edgeR. This normalization strategy is suitable for many bulk RNA-seq count datasets, but users should confirm that it is appropriate for their specific data modality. If another normalization method is more appropriate, users should pre-normalize the data and keep normalize = FALSE.

Here, we prepare a simple normalized bulk-like expression matrix with genes in rows and samples in columns.

set.seed(60)

MyExptl_data <- matrix(
  data = runif(n = 100000, min = 2, max = 300),
  nrow = 2000,
  ncol = 50,
  dimnames = list(
    gene.names,
    c(
      paste("cancer_sample", 1:25, sep = "_"),
      paste("normal_sample", 1:25, sep = "_")
    )
  )
)

# Log-transform the data to mimic normalized log-scale bulk expression values
MyExptl_data <- log2(MyExptl_data)

MyExptl_data[1:5, c(1:5, 45:50)] %>% t()

Have a look at top 5 cancer and normal samples (transposed for better visualization) of the Exptl_data:

gene_1 gene_2 gene_3 gene_4 gene_5
cancer_sample_1 8 8 8 8 8
cancer_sample_2 7 8 6 8 8
cancer_sample_3 8 7 8 7 8
cancer_sample_4 8 7 7 7 8
cancer_sample_5 6 4 8 5 4
normal_sample_20 8 7 7 8 8
normal_sample_21 8 7 8 6 8
normal_sample_22 8 8 8 7 6
normal_sample_23 7 6 8 7 8
normal_sample_24 8 8 7 5 7
normal_sample_25 5 7 8 8 6

When Exptl_data_orientation = "features_columns" The sample conditions can be supplied as a vector in the same order as the columns of MyExptl_data:

condition <- c(rep("C", 25), rep("N", 25))
MyExptl_data$condition <- condition

Alternatively, if Exptl_data_orientation = "features_rows", the condition can be provided as a row in the input data and the name of that row can be passed to the condition argument. For example:


MyExptl_data_with_condition <- rbind(
  condition = condition,
  MyExptl_data
)

# In this case, condition = "condition"

However, for matrix-based analyses, it is generally cleaner to provide the condition as a separate vector.

Optional pseudo-sampling for large datasets

For large datasets, especially single-cell datasets with many cells, ExIR can perform pseudo-sampling before running the main model. Pseudo-sampling is recommended when the number of samples/cells is greater than 500 or when computational resources are limited.

For bulk data, pseudo-sampling is performed within each condition group by randomly partitioning samples into non-overlapping groups and averaging normalized log-expression values within each group.

For single-cell RNA-seq data, pseudo-sampling is performed by randomly partitioning cells within each condition group, summing raw counts within each pseudo-sample, and then applying TMM normalization and logCPM transformation using edgeR.

The argument:

pseudo_samples_per_group = 100

means that ExIR will generate 100 pseudo-samples per condition group. For example, if a condition contains 500 cells and pseudo_samples_per_group = 100, each pseudo-sample will contain 5 cells. If another condition contains 536 cells, 36 pseudo-samples will contain 6 cells and 64 pseudo-samples will contain 5 cells.

Conservative feature filtering

ExIR includes an optional conservative feature-filtering step before the main RF, PCA, and correlation analyses:

feature_filter = TRUE

This is not a highly variable gene filter. Instead, it removes features with insufficient prevalence, insufficient total signal if requested, or essentially zero variance. This helps reduce non-informative features before the expensive full feature-feature correlation analysis while still preserving biologically relevant non-DE mediators.

By default, features present in Diff_data and Desired_list are retained even if they fail the conservative expression/prevalence filters:

always_keep_diff_features = TRUE

This helps preserve candidate differential or user-specified features while reducing uninformative background features.

Running the ExIR model

Prepare the required arguments for the exir model.


# The table of differential/regression data previously prepared
my_Diff_data

# Column indices of differential values in Diff_data
Diff_value <- c(1, 3)

# Column index of regression values in Diff_data
Regr_value <- 5

# Column indices of significance values in Diff_data
Sig_value <- c(2, 4)

# The matrix of normalized experimental data previously prepared
MyExptl_data

# The condition vector in the same order as the samples/columns of MyExptl_data
condition <- c(rep("C", 25), rep("N", 25))

# Optional desired list of features
set.seed(60)
MyDesired_list <- sample(gene.names, size = 500)

# Run the ExIR model
My.exir <- exir(
  Desired_list = MyDesired_list,
  Diff_data = my_Diff_data,
  Diff_value = Diff_value,
  Regr_value = Regr_value,
  Sig_value = Sig_value,
  Exptl_data = MyExptl_data,
  Exptl_data_type = "bulk",
  condition = condition,
  Exptl_data_orientation = "features_rows",
  normalize = FALSE,
  pseudo_sample = FALSE,
  feature_filter = TRUE,
  cor_thresh_method = "mr",
  mr = 100,
  seed = 60,
  verbose = FALSE
)

names(My.exir)
#> [1] "Driver table"         "DE-mediator table"    "Biomarker table"      "Graph"

class(My.exir)
#> [1] "ExIR_Result"

If the input bulk RNA-seq data are raw count-like values, normalize = TRUE can be used:

My.exir <- exir(
  Desired_list = MyDesired_list,
  Diff_data = my_Diff_data,
  Diff_value = Diff_value,
  Regr_value = Regr_value,
  Sig_value = Sig_value,
  Exptl_data = raw_count_matrix,
  Exptl_data_type = "bulk",
  condition = condition,
  Exptl_data_orientation = "features_rows",
  normalize = TRUE,
  feature_filter = TRUE,
  cor_thresh_method = "mr",
  mr = 100,
  seed = 60,
  verbose = FALSE
)

The output of exir is an object of class ExIR_Result, containing a graph and one or more result tables depending on the input data and model settings.

Have a look at the output tables:

  • Drivers
Score Z.score Rank P.value P.adj Type
gene_947 5.774833 -0.9620144 286 0.8319788 0.8817412 Accelerator
gene_90 35.813378 0.9440501 54 0.1725720 0.8817412 Decelerator
gene_116 11.060591 -0.6266121 221 0.7345432 0.8817412 Decelerator
gene_96 8.687675 -0.7771830 248 0.7814746 0.8817412 Accelerator
gene_674 28.826453 0.5007021 77 0.3082904 0.8817412 Decelerator
gene_1017 24.162479 0.2047545 100 0.4188820 0.8817412 Accelerator
  • Biomarkers
Score Z.score Rank P.value P.adj Type
gene_947 1.000003 -0.2050551 269 0.58123546 0.5812356 Up-regulated
gene_90 1.000007 -0.2050545 246 0.58123524 0.5812356 Down-regulated
gene_116 1.000002 -0.2050552 276 0.58123549 0.5812356 Down-regulated
gene_96 1.308484 -0.1644440 70 0.56530917 0.5812356 Up-regulated
gene_674 1.017092 -0.2028053 125 0.58035641 0.5812356 Down-regulated
gene_1017 12.507207 1.3098553 12 0.09512239 0.5812356 Up-regulated
  • DE-mediators
Score Z.score Rank P.value P.adj
gene_592 11.10698 -1.01338150 155 0.8445610 0.9191820
gene_258 17.95400 -0.66579750 133 0.7472297 0.9191820
gene_549 55.86578 1.25876700 25 0.1040573 0.7359122
gene_891 69.81941 1.96711288 9 0.0245851 0.4578919
gene_1450 32.99729 0.09786426 68 0.4610200 0.9191820
gene_742 28.62281 -0.12420298 79 0.5494227 0.9191820

Running exir on single-cell RNA-seq data

For single-cell RNA-seq data, raw counts are recommended when pseudo-sampling is used. The input can be a matrix, sparse matrix, or Seurat object.

For a sparse count matrix with genes in rows and cells in columns:

My.exir.sc <- exir(
  Desired_list = MyDesired_list,
  Diff_data = my_Diff_data,
  Diff_value = Diff_value,
  Regr_value = Regr_value,
  Sig_value = Sig_value,
  Exptl_data = sc_counts,
  Exptl_data_type = "sc",
  condition = cell_condition,
  Exptl_data_orientation = "features_rows",
  pseudo_sample = TRUE,
  pseudo_samples_per_group = 100,
  feature_filter = TRUE,
  cor_thresh_method = "mr",
  mr = 20,
  seed = 60,
  verbose = FALSE
)

For a Seurat object:

My.exir.seurat <- exir(
  Desired_list = MyDesired_list,
  Diff_data = my_Diff_data,
  Diff_value = Diff_value,
  Regr_value = Regr_value,
  Sig_value = Sig_value,
  Exptl_data = seurat_object,
  Exptl_data_type = "sc",
  condition = "condition",
  assay = "RNA",
  layer = "counts",
  pseudo_sample = TRUE,
  pseudo_samples_per_group = 100,
  feature_filter = TRUE,
  cor_thresh_method = "mr",
  mr = 20,
  seed = 60,
  verbose = FALSE
)

When a Seurat object is supplied, condition should be the name of a metadata column. The assay and layer arguments specify which assay/layer should be used.

If single-cell data are not pseudo-sampled, users should provide appropriately normalized single-cell data and set:

pseudo_sample = FALSE
normalize = FALSE

The following tutorial video demonstrates how to run the ExIR model on a sample experimental data.

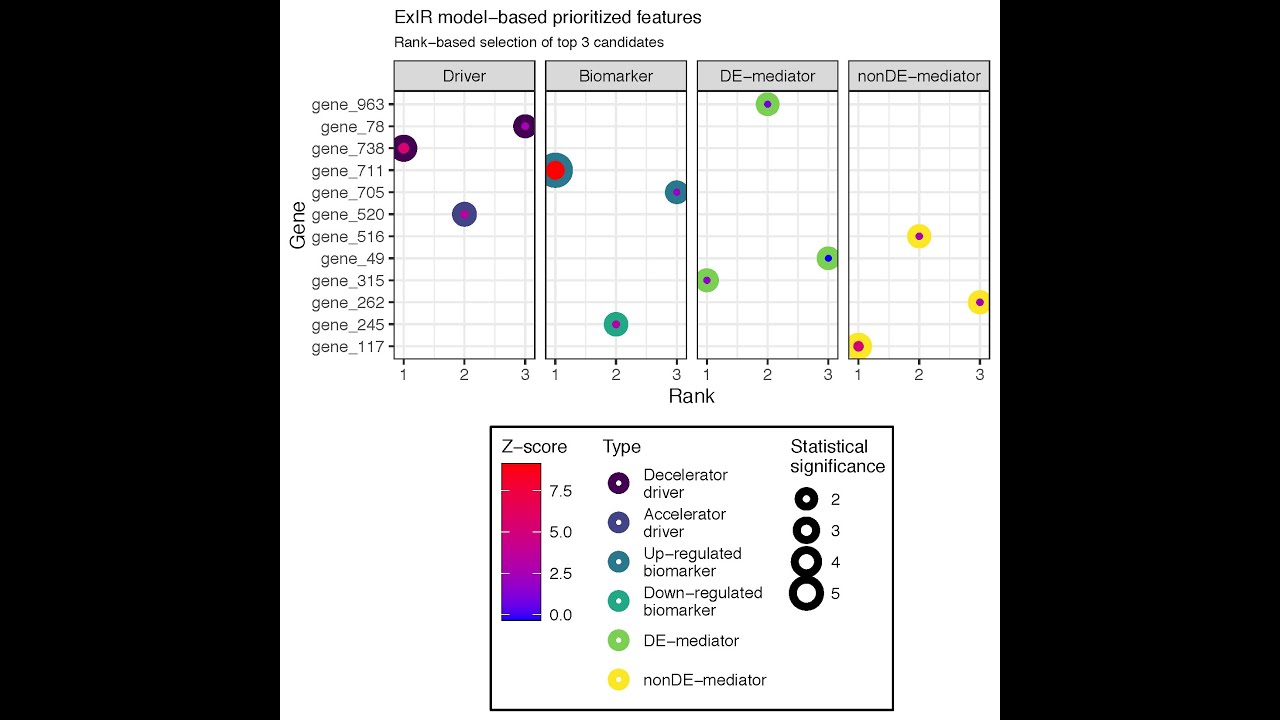

Watch the ExIR tutorial video on YouTube

You can also computationally simulate knockout and/or up-regulation of the top candidate features outputted by ExIR to evaluate the impact of their manipulation on the flow of information/signaling and the integrity of the network prior to experimental validation.

ExIR visualization

The exir.vis function visualizes the output of the ExIR model. The function gets the output of the ExIR model as a single argument and returns a plot of the top prioritized features of all available classes. Here, we visualize the top five candidates of the results of the ExIR model obtained in the previous step.

My.exir.Vis <- exir.vis(exir.results = My.exir,
                        n = 5,
                        y.axis.title = "Gene")

My.exir.Vis

A complete set of arguments is available for adjusting the visual features of the plot and selecting the desired classes, feature types, and number of top candidates.

The following tutorial video demonstrates how to visualize the results of the ExIR model.

Watch the ExIR tutorial video on YouTube

ExIR shiny app

A shiny app has also been developed for Running the ExIR model, visualization of its results as well as computational simulation of knockout and/or up-regulation of its top candidate outputs, which is accessible using the following command.
influential::runShinyApp("ExIR")
You can also access the shiny app online at the Influential Software Package server.

Back to top

Computational manipulation of cells

The comp_manipulate is a function for the simulation of feature (gene, protein, etc.) knockout and/or up-regulation in cells. This function works based on the SIRIR (SIR-based Influence Ranking) model and could be applied on the output of the ExIR model or any other independent association network. For feature (gene/protein/etc.) knockout the SIRIR model is used to remove the feature from the network and assess its impact on the flow of information (signaling) within the network. On the other hand, in case of up-regulation a node similar to the desired node is added to the network with exactly the same connections (edges) as of the original node. Next, the SIRIR model is used to evaluate the difference in the flow of information/signaling after adding (up-regulating) the desired feature/node compared with the original network. In case you are applying this function on the output of ExIR model, you may note that as the gene/protein knockout would impact on the integrity of the under-investigation network as well as the networks of other overlapping biological processes/pathways, it is recommended to select those features that simultaneously have the highest (most significant) ExIR-based rank and lowest knockout rank. In contrast, as the up-regulation would not affect the integrity of the network, you may select the features with highest (most significant) ExIR-based and up-regulation-based ranks. Altogether, it is recommended to select the features with the highest (most significant) ExIR-based (major drivers or mediators of the under-investigation biological process/disease) and Up-regulation-based (having higher impact on the signaling within the under-investigation network when up-regulated) ranks, but with the lowest Knockout-based rank (having the lowest disturbance to the under-investigation as well as other overlapping networks). Below is an example of running this function on the same ExIR output generated above.

# Select which genes to knockout
set.seed(60)
ko_vertices <- sample(igraph::as_ids(V(My.exir$Graph)), size = 5)

# Select which genes to up-regulate
set.seed(1234)
upregulate_vertices <- sample(igraph::as_ids(V(My.exir$Graph)), size = 5)

Computational_manipulation <- comp_manipulate(exir_output = My.exir,
                                              ko_vertices = ko_vertices,
                                              upregulate_vertices = upregulate_vertices,
                                              beta = 0.5, gamma = 1, no.sim = 100, seed = 1234)

Have a look at the heads of the output tables:

  • Knockout
Feature_name Rank Manipulation_type
2 gene_280 1 Knockout
1 gene_4798 2 Knockout
4 gene_276 3 Knockout
3 gene_16459 4 Knockout
5 gene_7535 5 Knockout
  • Up-regulation
Feature_name Rank Manipulation_type
gene_6433 1 Up-regulation
gene_8426 1 Up-regulation
gene_6687 1 Up-regulation
gene_1274 1 Up-regulation
gene_11555 1 Up-regulation
  • Combined
Feature_name Rank Manipulation_type
2 gene_280 1 Knockout
1 gene_4798 2 Knockout
4 gene_276 3 Knockout
3 gene_16459 4 Knockout
11 gene_6433 5 Up-regulation
21 gene_8426 5 Up-regulation
31 gene_6687 5 Up-regulation
41 gene_1274 5 Up-regulation
51 gene_11555 5 Up-regulation
5 gene_7535 10 Knockout

Back to top

References
